之前的项目做过浏览器某个页面打印成pdf的服务，所用的是tcpdf这个包，大概思路就是后台写一套跟页面一样的html模版，打印的时候把数据渲染进去，不好的地方在于所见非所得，你得花大把的时间去做一些样式的调整,甚是痛苦。
还有一个问题是现在的页面渲染很多都使用js，这样的话在后端并没有办法处理，经过调查，发现了chrome headless模式。
所谓chrome headless就是让chrome以无头的模式在后台运行，然后我们可以借用他的api打印pdf（不仅仅是打印pdf，还可以截图，还有很多别的功能我了解的也不是很透彻）
开胃菜
如果你仅仅是想测试一下这个功能，可以通过命令行执行chrome文件，如下
chrome \ # 注意chrome是你的可执行软件，不同操作系统路径不同 --headless \ # Runs Chrome in headless mode. --disable-gpu \ # Temporarily needed if running on Windows. --remote-debugging-port=9222 \ https://www.chromestatus.com # URL to open. Defaults to about:blank.
这样就会把目标网站打印成pdf了，没测过，不知道行不行。
正餐
安装与启动
在 Chrome 安装完毕后我们可以利用其包体内自带的命令行工具启动：
$ chrome --headless --remote-debugging-port=9222 https://chromium.org
笔者为了部署方便，使用 Docker 镜像来进行快速部署，如果你本地存在 Docker 环境，可以使用如下命令快速启动：
docker run -d -p 9222:9222 justinribeiro/chrome-headless

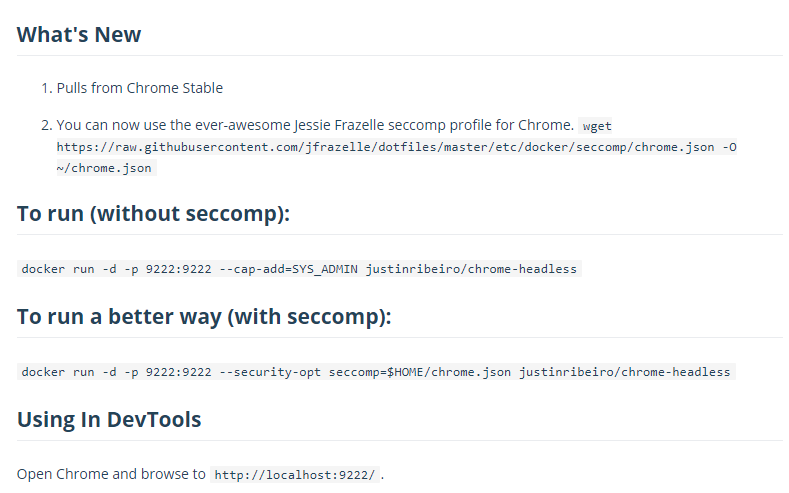

Dockerfile
# 在容器运行一个 Chrome Headless # # What was once a container using the experimental build of headless_shell from # tip, this container now runs and exposes stable Chrome headless via # google-chome --headless. # # 最新消息 # # 1. Pulls from Chrome Stable # 2. You can now use the ever-awesome Jessie Frazelle seccomp profile for Chrome. # wget https://raw.githubusercontent.com/jfrazelle/dotfiles/master/etc/docker/seccomp/chrome.json -O ~/chrome.json # # # To run (without seccomp): # docker run -d -p 9222:9222 --cap-add=SYS_ADMIN justinribeiro/chrome-headless # # To run a better way (with seccomp): # docker run -d -p 9222:9222 --security-opt seccomp=$HOME/chrome.json justinribeiro/chrome-headless # # Basic use: open Chrome, navigate to http://localhost:9222/ # # Base docker image FROM debian:buster-slim LABEL name="chrome-headless" \ maintainer="Justin Ribeiro <justin@justinribeiro.com>" \ version="3.0" \ description="Google Chrome Beta Headless in a container" # Install deps + add Chrome Stable + purge all the things RUN apt-get update && apt-get install -y \ apt-transport-https \ ca-certificates \ curl \ gnupg \ --no-install-recommends \ && curl -sSL https://dl.google.com/linux/linux_signing_key.pub | apt-key add - \ && echo "deb https://dl.google.com/linux/chrome/deb/ stable main" > /etc/apt/sources.list.d/google-chrome.list \ && apt-get update && apt-get install -y \ google-chrome-beta \ fontconfig \ fonts-ipafont-gothic \ fonts-wqy-zenhei \ fonts-thai-tlwg \ fonts-kacst \ fonts-symbola \ fonts-noto \ fonts-freefont-ttf \ --no-install-recommends \ && apt-get purge --auto-remove -y curl gnupg \ && rm -rf /var/lib/apt/lists/* # Add Chrome as a user RUN groupadd -r chrome && useradd -r -g chrome -G audio,video chrome \ && mkdir -p /home/chrome && chown -R chrome:chrome /home/chrome \ && mkdir -p /opt/google/chrome-beta && chown -R chrome:chrome /opt/google/chrome-beta # Run Chrome non-privileged USER chrome # Expose port 9222 EXPOSE 9222 # Autorun chrome headless with no GPU ENTRYPOINT [ "google-chrome" ] CMD [ "--headless", "--disable-gpu", "--remote-debugging-address=0.0.0.0", "--remote-debugging-port=9222" ]
安装完访问 http://localhost:9222/json 得到如下
[ {
"description": "",
"devtoolsFrontendUrl": "/devtools/inspector.html?ws=192.168.0.56:9222/devtools/page/5110254FCED608FEA5F25F61751EE5ED",
"id": "5110254FCED608FEA5F25F61751EE5ED",
"title": "about:blank",
"type": "page",
"url": "about:blank",
"webSocketDebuggerUrl": "ws://localhost:9222/devtools/page/5110254FCED608FEA5F25F61751EE5ED"
} ]如果是在 Mac 下本地使用的话我们还可以创建命令别名：
alias chrome="/Applications/Google\ Chrome.app/Contents/MacOS/Google\ Chrome" alias chrome-canary="/Applications/Google\ Chrome\ Canary.app/Contents/MacOS/Google\ Chrome\ Canary" alias chromium="/Applications/Chromium.app/Contents/MacOS/Chromium"
如果是在 Ubuntu 环境下我们可以使用 deb 进行安装：
# Install Google Chrome # https://askubuntu.com/questions/79280/how-to-install-chrome-browser-properly-via-command-line sudo apt-get install libxss1 libappindicator1 libindicator7 wget https://dl.google.com/linux/direct/google-chrome-stable_current_amd64.deb sudo dpkg -i google-chrome*.deb # Might show "errors", fixed by next line sudo apt-get install -f
chrome 命令行也支持丰富的命令行参数，--dump-dom 参数可以将 document.body.innerHTML 打印到标准输出中：
chrome --headless --disable-gpu --dump-dom https://www.chromestatus.com/
而 --print-to-pdf 标识则会将网页输出位 PDF：
chrome --headless --disable-gpu --print-to-pdf https://www.chromestatus.com/
初次之外，我们也可以使用 --screenshot 参数来获取页面截图：
chrome --headless --disable-gpu --screenshot https://www.chromestatus.com/ # Size of a standard letterhead. chrome --headless --disable-gpu --screenshot --window-size=1280,1696 https://www.chromestatus.com/ # Nexus 5x chrome --headless --disable-gpu --screenshot --window-size=412,732 https://www.chromestatus.com/
如果我们需要更复杂的截图策略，譬如进行完整页面截图则需要利用代码进行远程控制。
代码控制
启动
在上文中我们介绍了如何利用命令行来手动启动 Chrome，这里我们尝试使用 Node.js 来启动 Chrome，最简单的方式就是使用 child_process 来启动：
const exec = require('child_process').exec;
function launchHeadlessChrome(url, callback) {
// Assuming MacOSx.
const CHROME = '/Applications/Google\ Chrome.app/Contents/MacOS/Google\ Chrome';
exec(`${CHROME} --headless --disable-gpu --remote-debugging-port=9222 ${url}`, callback);
}
launchHeadlessChrome('https://www.chromestatus.com', (err, stdout, stderr) => {
...
});远程控制
这里我们使用 chrome-remote-interface 来远程控制 Chrome ，实际上 chrome-remote-interface 是对于 Chrome DevTools Protocol 的远程封装，我们可以参考协议文档了解详细的功能与参数。使用 npm 安装完毕之后，我们可以用如下代码片进行简单控制：
const CDP = require('chrome-remote-interface');
CDP((client) => {
// extract domains
const {Network, Page} = client;
// setup handlers
Network.requestWillBeSent((params) => {
console.log(params.request.url);
});
Page.loadEventFired(() => {
client.close();
});
// enable events then start!
Promise.all([
Network.enable(),
Page.enable()
]).then(() => {
return Page.navigate({url: 'https://github.com'});
}).catch((err) => {
console.error(err);
client.close();
});
}).on('error', (err) => {
// cannot connect to the remote endpoint
console.error(err);
});我们也可以使用 chrome-remote-interface 提供的命令行功能，譬如我们可以在命令行中访问某个界面并且记录所有的网络请求：
$ chrome-remote-interface inspect
>>> Network.enable()
{ result: {} }
>>> Network.requestWillBeSent(params => params.request.url)
{ 'Network.requestWillBeSent': 'params => params.request.url' }
>>> Page.navigate({url: 'https://www.wikipedia.org'})
{ 'Network.requestWillBeSent': 'https://www.wikipedia.org/' }
{ result: { frameId: '5530.1' } }
{ 'Network.requestWillBeSent': 'https://www.wikipedia.org/portal/wikipedia.org/assets/img/Wikipedia_wordmark.png' }
{ 'Network.requestWillBeSent': 'https://www.wikipedia.org/portal/wikipedia.org/assets/img/Wikipedia-logo-v2.png' }
{ 'Network.requestWillBeSent': 'https://www.wikipedia.org/portal/wikipedia.org/assets/js/index-3b68787aa6.js' }
{ 'Network.requestWillBeSent': 'https://www.wikipedia.org/portal/wikipedia.org/assets/js/gt-ie9-c84bf66d33.js' }
{ 'Network.requestWillBeSent': 'https://www.wikipedia.org/portal/wikipedia.org/assets/img/sprite-bookshelf_icons.png?16ed124e8ca7c5ce9d463e8f99b2064427366360' }
{ 'Network.requestWillBeSent': 'https://www.wikipedia.org/portal/wikipedia.org/assets/img/sprite-project-logos.png?9afc01c5efe0a8fb6512c776955e2ad3eb48fbca' }我们也可以直接查看内置的接口文档：
>>> Page.navigate
{ [Function]
category: 'command',
parameters: { url: { type: 'string', description: 'URL to navigate the page to.' } },
returns:
[ { name: 'frameId',
'$ref': 'FrameId',
hidden: true,
description: 'Frame id that will be navigated.' } ],
description: 'Navigates current page to the given URL.',
handlers: [ 'browser', 'renderer' ] }>>> Page.navigate
{ [Function]
category: 'command',
parameters: { url: { type: 'string', description: 'URL to navigate the page to.' } },
returns:
[ { name: 'frameId',
'$ref': 'FrameId',
hidden: true,
description: 'Frame id that will be navigated.' } ],
description: 'Navigates current page to the given URL.',
handlers: [ 'browser', 'renderer' ] }我们在上文中还提到需要以代码控制浏览器进行完整页面截图，这里需要利用 Emulation 模块控制页面视口缩放：
const CDP = require('chrome-remote-interface');
const argv = require('minimist')(process.argv.slice(2));
const file = require('fs');
// CLI Args
const url = argv.url || 'https://www.google.com';
const format = argv.format === 'jpeg' ? 'jpeg' : 'png';
const viewportWidth = argv.viewportWidth || 1440;
const viewportHeight = argv.viewportHeight || 900;
const delay = argv.delay || 0;
const userAgent = argv.userAgent;
const fullPage = argv.full;
// Start the Chrome Debugging Protocol
CDP(async function(client) {
// Extract used DevTools domains.
const {DOM, Emulation, Network, Page, Runtime} = client;
// Enable events on domains we are interested in.
await Page.enable();
await DOM.enable();
await Network.enable();
// If user agent override was specified, pass to Network domain
if (userAgent) {
await Network.setUserAgentOverride({userAgent});
}
// Set up viewport resolution, etc.
const deviceMetrics = {
width: viewportWidth,
height: viewportHeight,
deviceScaleFactor: 0,
mobile: false,
fitWindow: false,
};
await Emulation.setDeviceMetricsOverride(deviceMetrics);
await Emulation.setVisibleSize({width: viewportWidth, height: viewportHeight});
// Navigate to target page
await Page.navigate({url});
// Wait for page load event to take screenshot
Page.loadEventFired(async () => {
// If the `full` CLI option was passed, we need to measure the height of
// the rendered page and use Emulation.setVisibleSize
if (fullPage) {
const {root: {nodeId: documentNodeId}} = await DOM.getDocument();
const {nodeId: bodyNodeId} = await DOM.querySelector({
selector: 'body',
nodeId: documentNodeId,
});
const {model: {height}} = await DOM.getBoxModel({nodeId: bodyNodeId});
await Emulation.setVisibleSize({width: viewportWidth, height: height});
// This forceViewport call ensures that content outside the viewport is
// rendered, otherwise it shows up as grey. Possibly a bug?
await Emulation.forceViewport({x: 0, y: 0, scale: 1});
}
setTimeout(async function() {
const screenshot = await Page.captureScreenshot({format});
const buffer = new Buffer(screenshot.data, 'base64');
file.writeFile('output.png', buffer, 'base64', function(err) {
if (err) {
console.error(err);
} else {
console.log('Screenshot saved');
}
client.close();
});
}, delay);
});
}).on('error', err => {
console.error('Cannot connect to browser:', err);
});php 部分
我们想跟后台运行的浏览器通讯，必须借助websocket的帮助，实际上是调用Chrome DevTools Protocol的api完成。
php 的websocket我选用了
"textalk/websocket": "1.0.*"获取
webSocketDebuggerUrl,这个非常重要，我们要拿着这个url通过websocket跟浏览器通讯
$curlCmd = "curl -s 127.0.0.1:9222/json";
do {
$json = json_decode(shell_exec($curlCmd));
} while (empty($json));
$endpoint = $json[0]->webSocketDebuggerUrl;获取到的response是这样滴[ {
"description": "",
"devtoolsFrontendUrl": "/devtools/inspector.html?ws=localhost:9222/devtools/page/76B74DBA491F065BDD6097DD81F5514C",
"id": "76B74DBA491F065BDD6097DD81F5514C",
"title": "about:blank",
"type": "page",
"url": "about:blank",
"webSocketDebuggerUrl": "ws://localhost:9222/devtools/page/76B74DBA491F065BDD6097DD81F5514C"
} ]
跟浏览器通讯，打印页面，代码中传输的参数都来自这里Chrome DevTools Protocol
```
// websocket
$client = new Client($endpoint);
$client->send(json_encode([
'id' => 1,
"method" => 'Page.enable',
]));
$client->send(json_encode([
'id' => 2,
"method" => 'Page.navigate',
"params" => ['url' => "https://test.com"]
]));
$frameId = null;
while ($data = json_decode($client->receive())) {
// 判断网页是否打开
if (@$data->id == 2) {
$frameId = $data->result->frameId;
}
// 判断网页是否停止加载
if (@$data->method == 'Page.frameStoppedLoading' && @$data->params->frameId == $frameId) {
$client->send(json_encode([
'id' => 3,
"method" => 'Page.printToPDF',
]));
}
// 获取结果
if (@$data->id == 3) {
file_put_contents("test.pdf", base64_decode($data->result->data));
break;
}
}
```饭(坑)后(坑)甜(坑)点
打印的网页中文乱码,原因是chrome运行的环境没有中文支持，需要安装中文字体
apt-get update && apt-get install -y fonts-wqy-zenhei所打印的页面中css
background-color打印不出来,需要在css中添加-webkit-print-color-adjust: exact;.
出处
结束语
不得不说chrome的打印非常牛逼，完美重现你的画面，js渲染的页面也可打印，哈哈哈，因为人家是浏览器啊～～～，天生支持。写的过程中还是有一个问题没解决的，react渲染页面需要时间，后台访问你的页面时有的还没加载完，打印会缺失一部分，我也不得不在后台写一个sleep（）解决,大家要是有什么好的办法可以留言讨论～～～
